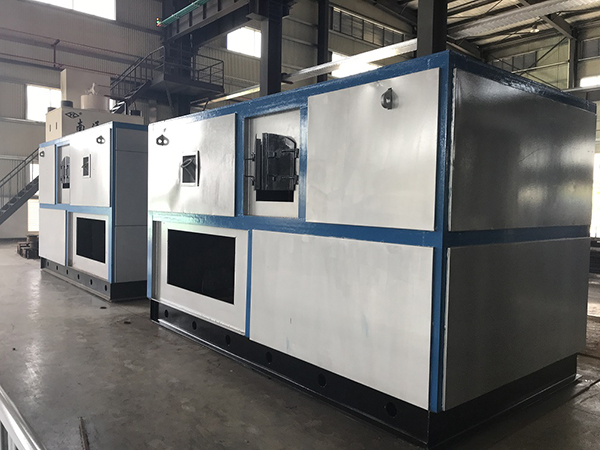

960kW Induction Furnace for Melting Pb, Zn, Cu & Cast Iron - China Suppliers Factory Equipment
Key Features
✓(1) Dismountable inductor, easy to replace.
✓(2) Special structure of melting channel ensures the small temperature difference between the molten metal and the hearth, which makes longer service life of the inductors.
✓(3) The furnace wall is poured by low cement material, which has better integrity and sealing property.
✓(4) Equipped with Overvoltage and overcurrent protection devices; automatic alarm and shutdown function when cooling air temperature is too high.
✓(5) Specially designed inductor material developed with refractory specialists for optimal Zn smelting.
✓(6) Computer numerical simulation technology used for optimizing the design of the melting groove.
✓(7) Optimum quality silicon steel sheet for the inductor iron core to minimize iron loss.
✓(8) High Zn direct recovery rate: ≥97%.
✓(9) Low energy consumption: 110~115kWh/t.
✓(10) Environmentally friendly with less smoke than rotary furnaces and improved working conditions.
✓(11) High unit output capacity.
Main Components
Inductor
Furnace Body
Graphite Ladle
Casting Machine
Feeder
Technical Parameters
| Model | Capacity | Power | Inductor Qty | Voltage |
| GYX-100-2000 | 100t | 2000kW | 2 | 380V |
| GYX-100-2000 | 100t | 2000kW | 3 | 660V |
| GYX-60-1200 | 60t | 1200kW | 4 | 500V |
| GYX-50-960 | 50t | 960kW | 3 | 380V |
| GYX-50-900 | 50t | 900kW | 3 | 380V |
| GYX-45-900 | 45t | 900kW | 3 | 380V |
| GYX-40-800 | 40t | 800kW | 2 | 500V |
| GYX-50-720 | 50t | 720kW | 3 | 380V |
| GYX-40-72 | 40t | 720kW | 3 | 380V |
| GYX-40-600 | 40t | 600kW | 2 | 380V |
| GYX-35-600 | 35t | 600kW | 2 | 380V |
| GYX-32-540 | 32t | 540kW | 6 | 380V |
| GYX-32-480 | 32t | 480kW | 2 | 380V |
| GYX-32-480 | 32t | 480kW | 6 | 380V |
| GYX-25-360 | 25t | 360kW | 2 | 380V |
| GYX-25-360 | 25t | 360kW | 6 | 380V |
| GYX-15-240 | 15t | 240kW | 2 | 380V |
| GYX-15-240 | 15t | 240kW | 3 | 380V |
| GYX-12-180 | 12t | 180kW/240kW | 1 | 380V |
| GYX-10-400 | 10t | 400kW | 1 | 500V |
| GYX-6-400 | 6t | 180kW | 1 | 380V |
Frequently Asked Questions
1. What are your prices?
Our prices are subject to the specific model and configuration requirements.
2. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
3. What is the average lead time?
The average lead time is approximately 3 months after receiving the advance payment.
4. What kinds of payment methods do you accept?
Payment terms are negotiable based on order volume and regional requirements.
5. Is technical support available for installation?
Yes, we provide technical guidance and support to ensure the proper installation and operation of the furnace.
6. How does the furnace improve environment conditions?
Our design produces significantly less smoke than traditional rotary furnaces, creating a safer and cleaner working environment for operators.
