China LHD Loaders 1.0m3 - Reliable Underground Loaders from Leading Suppliers and Factory
China LHD Loaders 1.0m3 - Reliable Underground Loaders from Leading Suppliers and Factory

China LHD Loaders 1.0m3 - Reliable Underground Loaders from Leading Suppliers and Factory

When it comes to efficient material handling in the most challenging underground environments, our LHD loaders stand out as a top choice. Designed with a strong focus on production economy, safety, and reliability, these loaders are perfect for transporting loose materials in underground mines, subway construction sites, and water conservation projects. As a leading factory in China, we are proud to be trusted suppliers of high-quality LHD loaders that meet the rigorous demands of various industries.

    Contact us
    Product Details

    Product Introduction

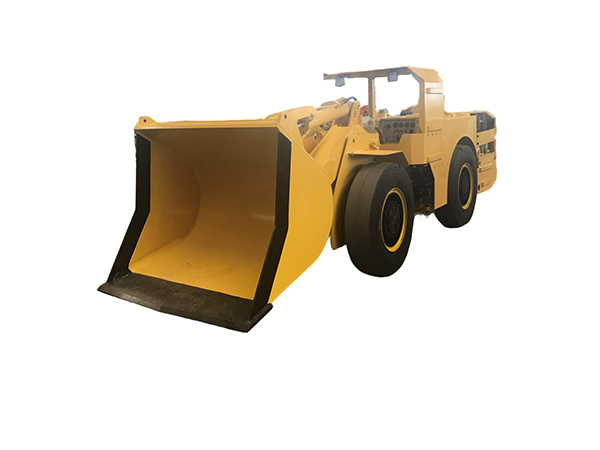

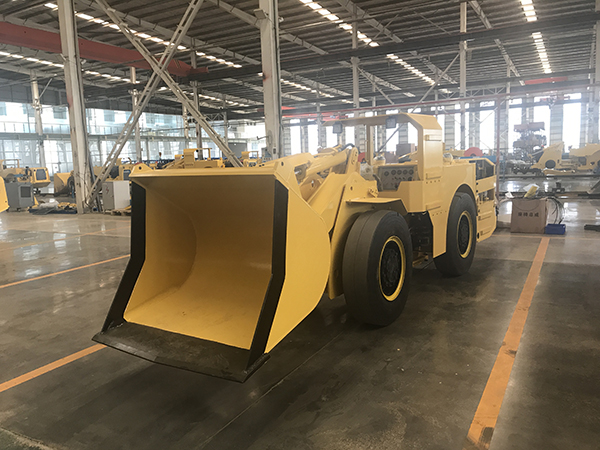

    SR-1.0 LHD is a compact and lightweight model for narrow mining, easy to operate and maintain, this machine features an operator compartment located on the rear frame to make sure low risk in safety. The SR-1.0 LHD is packed with features to help mines to maximize the output and minimize the mining cost. It has been designed to optimize the width, length and turning radius, to allow operation easier in narrow underground tunnels.
    Features
    • The frames are articulated with 38°angle;
    • Enhanced boom and load frame geometry maximizes working performance;
    • Hydraulic joystick control to reduce the worker’s labor intensity;
    • Low vibration in cab;
    Applications
    The SR-1.0 is used in underground mine of narrow tunnels.
    Packing-and-Storage1
    Packing-and-Storage1
    Parameters
    Item Parameter
    Total Weight(t) 6.75
    Engine Power(kW) 58
    Dimension(L×W×H) 5850×1300×2000
    Bucket Volume(m3) 1
    Payload(t) 2
    Max. Lift Height(mm) 3335
    Max. Break out force(kN) 42
    Max. unloading height(mm) 1200
    Min. Ground Clearance(mm) 220
    Traming speed(km/h) 0~8
    Brake mode Wet spring brake
    Climbing ability ≥14°
    Tire 10.00-20
    Drawings
    Packing-and-Storage1
    Packing-and-Storage1
    Parts
    Packing-and-Storage1
    Drive Axle
    Packing-and-Storage1
    Hydraulic Pump
    Packing-and-Storage1
    Steering Gear
    Packing-and-Storage1
    Tire
    FAQ
    What are your prices?
    Our prices are subject to model.
    Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
    What is the average lead time?
    The average lead time would be 3 months after advance payment.
    What kinds of payment methods do you accept?
    Negotiable.
    What is the bucket volume and payload capacity of the SR-1.0 LHD?
    The SR-1.0 LHD features a bucket volume of 1 m³ and has a payload capacity of 2 tons.
    What type of brake system and engine power does this model use?
    This model utilizes a wet spring brake system and is equipped with an engine power of 58 kW.
