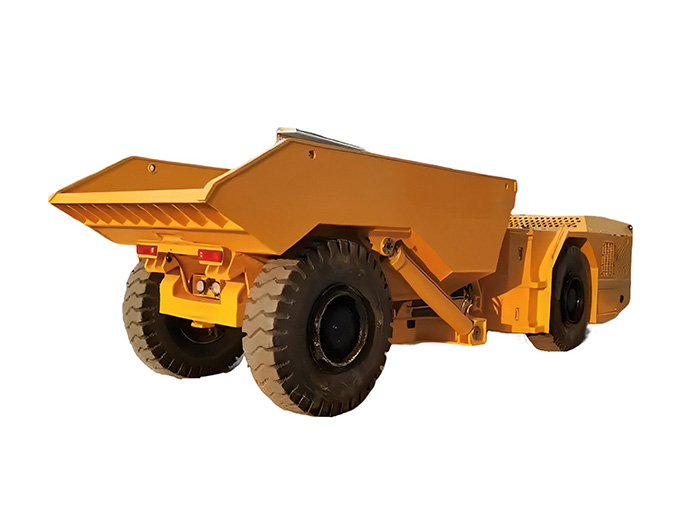

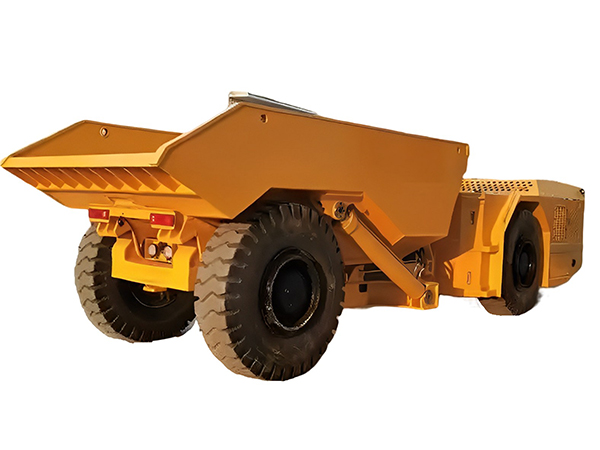

Dump Truck UK-12

Short Description:

The UK-12 underground dump truck is a new type of underground truck that has been repeatedly improved and independently developed by our company based on market needs after collecting and analyzing relevant data on underground mine trucks in domestic and abroad market and optimizing its configuration.

Product Detail

Product Tags

Product Introduction

Our UK-12 dump truck integrates transportation and unloading, and has the advantages of reliable and convenient operation, wide field of vision, etc., It is suitable for large-scale loading and unloading of ores in underground mines. The key parts of this truck are the advanced products developed by well-known foreign companies. The engine adopts German Deutz water-cooled diesel engine, which has the characteristics of low noise, good economy, high power, low emissions, etc., and the D series purifier newly developed by Canadian Nett Co. It is used to reduce air pollution and effectively improve underground operations surroundings. The torque converter, gearbox and drive axle adopt the latest Dana brand products to increase the reliability of the whole machine. The truck's structural parts use the latest low-alloy high-strength steel plate developed in China with high strength and small deformation. The machine technology fully reflected 30 years of mature manufacturing experience in underground trackless equipment of our company.


1.DEUTZ diesel engine can ensure high power for the machine;
2.Front and rear frames are centrally articulated with reliable performance and low failure rate;
3.Full hydraulic steering system, easy operation;
4.Combination of parking brake, working brake and emergency brake has good braking effect;
5.Gas emission system selects Canada MF brand purifier, which greatly reduces pollution and can create a good working atmosphere for operators.

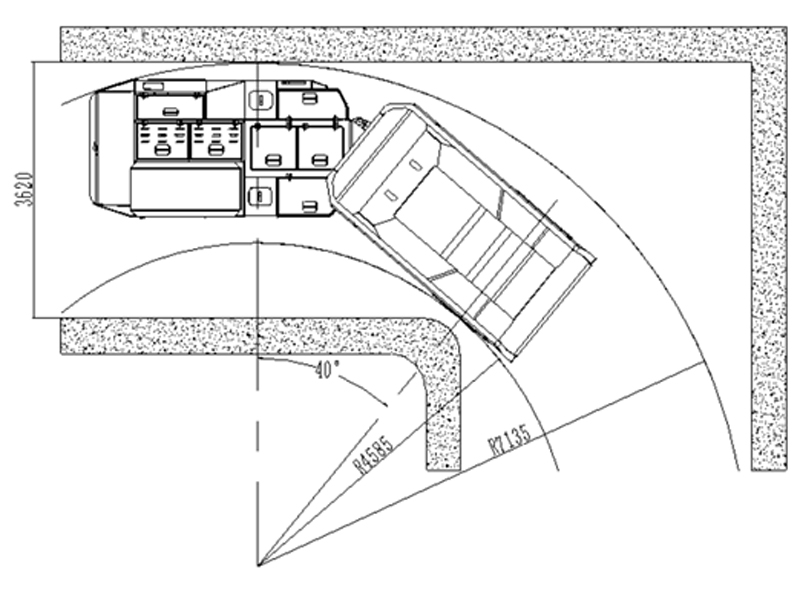

Drawings 1

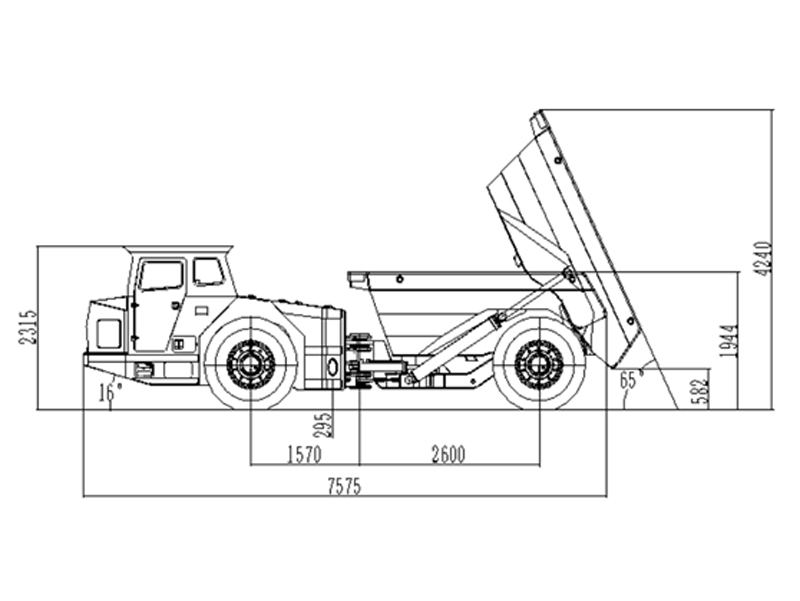

Drawings 2


The UK-12 is used to loading, transportation and unloading ores in underground mines.

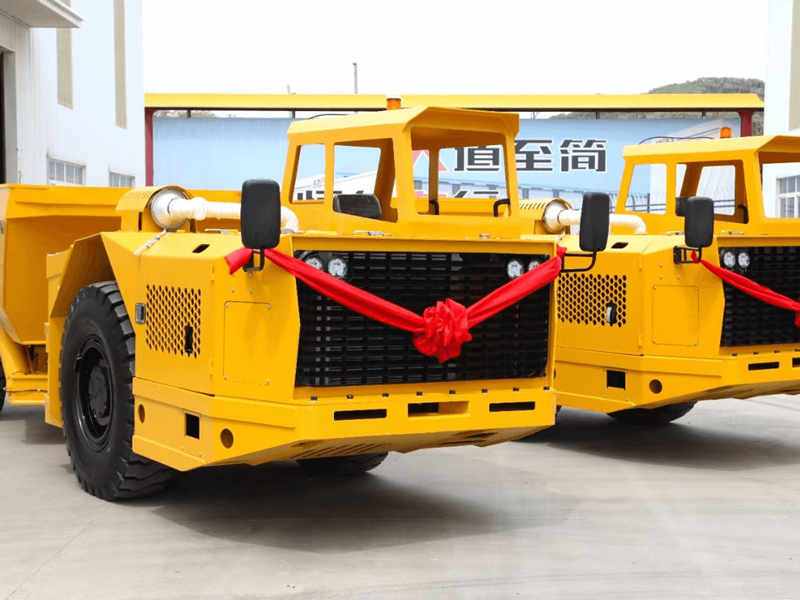

Application 1

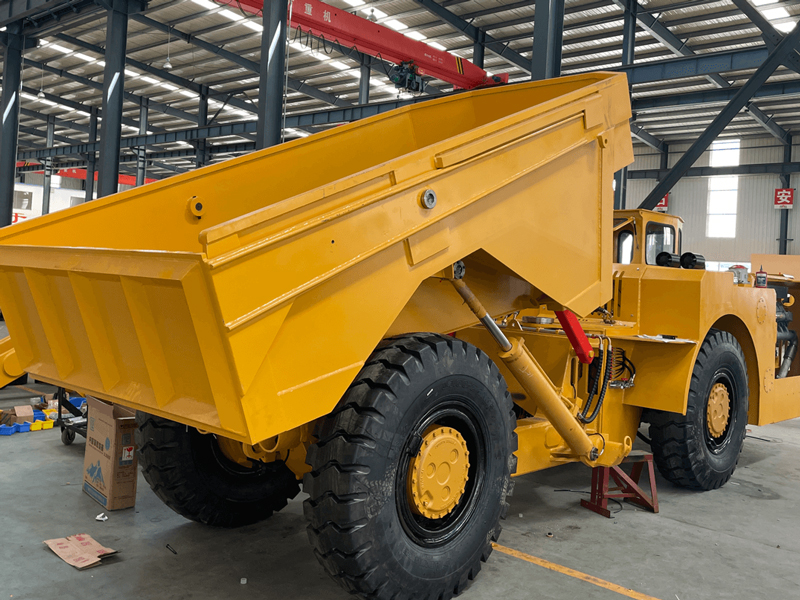

Application 2


Item Parameter
Bucket Capacity 6 m3
Nominal Load Capacity 12 t
Running Speed(km/h) Ⅰ:5±0.5Ⅱ10±0.5Ⅲ:16±0.5Ⅳ22.5±0.5
Maximum Grade Capacity 14°
Max. Unloading Angle 65°
Min. Turning Radius(External) 7135mm
Max. Steering Angle ±42°
Min. Ground Clearance 295mm
Tipping Time 15s
Dumping Time 10s
Dimension(L×W×H) 7575×1950×2315
Weight 13.8t
Traction Force 143kN


1.What are your prices?
Our prices are subject to model.

2.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3.What is the average lead time?
The average lead time would be 3 months after advance payment.

4.What kinds of payment methods do you accept?
