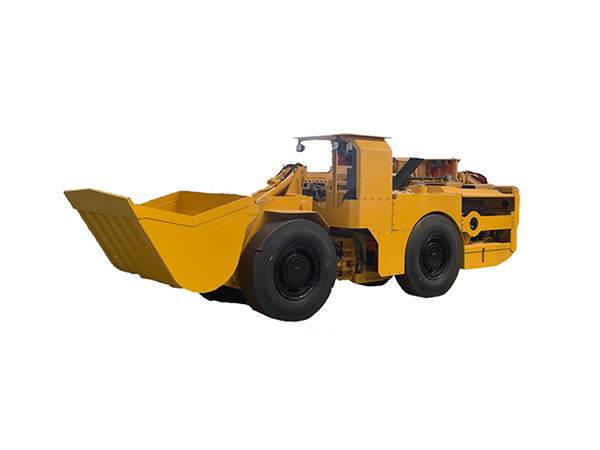

LHD loader-0.6m3

Short Description:

With overall production economy, safety and reliability in mind, LHD loaders are used for transporting loosen materials in toughest underground places like underground mine,   subway places, water conservation project sites.

Product Detail

Product Tags

Product Introduction

SR-0.6 LHD is a compact and lightweight scooptram for narrow vein mining. Best-in-class payload-to-weight ratio. Offers reduced dilution, increased flexibility, and operator safety when works in narrow tunnel. The loader is easy to operate and maintain, and features an operator's cab located on the rear frame of the machine to ensure increased operator safety. The SR-0.6 LHD is full of features to help mines maximize tonnes and minimize extraction costs. It has been engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.


The frames are articulated with 38°angle;

Enhanced boom and load frame geometry maximizes working performance;

Hydraulic joystick control to reduce the worker’s labor intensity;

Low vibration in cab;

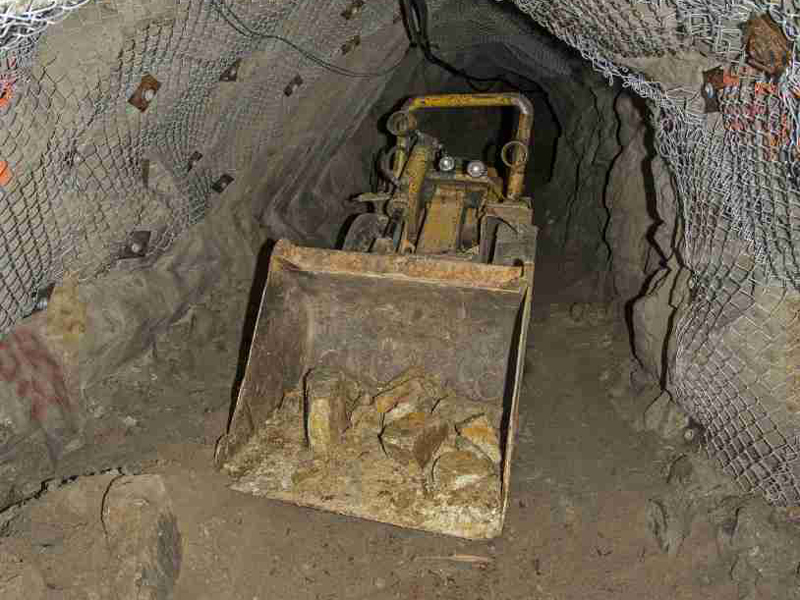

The SR-0.6 is used in underground mine of narrow tunnels.



Item Parameter
Total Weight(t) 4.4
Engine Power(kW) 47.5
Dimension(L×W×H) 5050×1150×1950
Bucket Volume(m3) 0.6
Payload(t) 1.2
Max. Lift Height(mm) 2600
Max. Break out force(kN) 27
Max. unloading height(mm) 900
Min. Ground Clearance(mm) 200
Traming speed(km/h) 0~9
Brake mode Wet spring brake
Climbing ability ≥14°

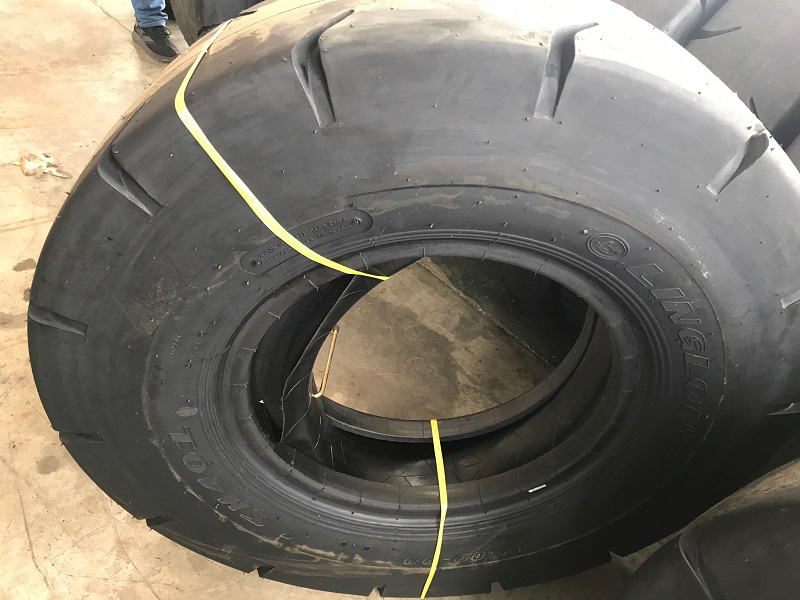

Tire 7.50-15

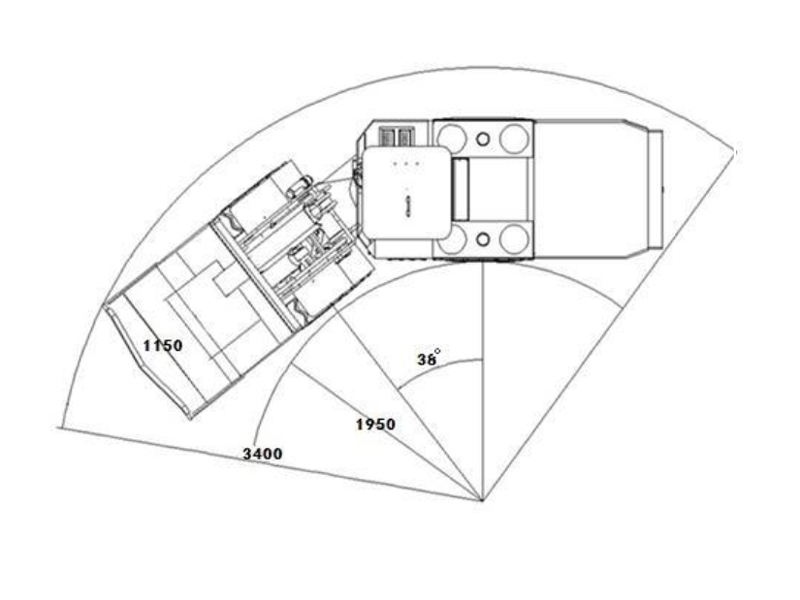

Drawings 1

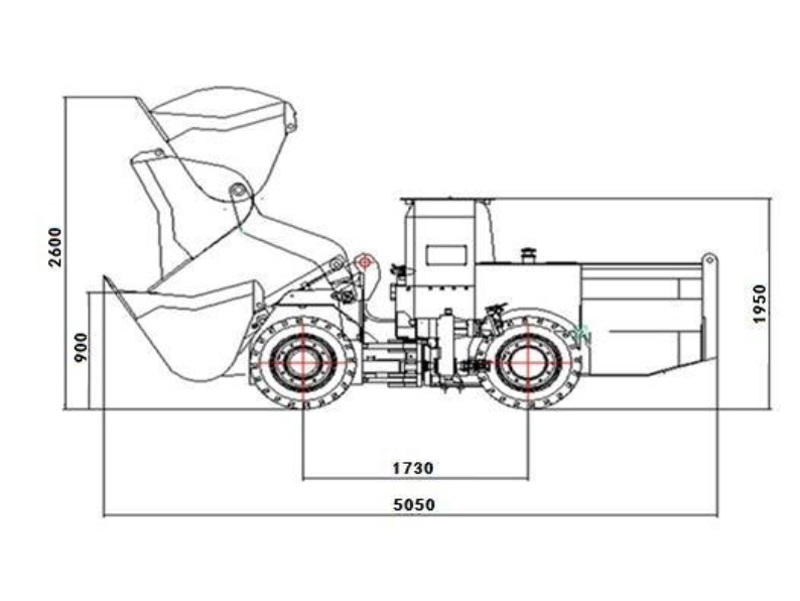

Drawings 2

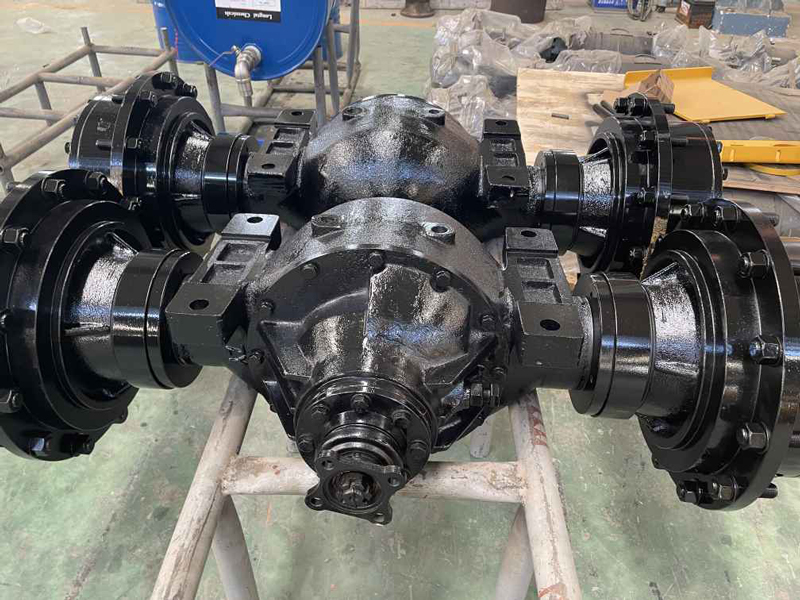

Drive Axle

Drive Axle

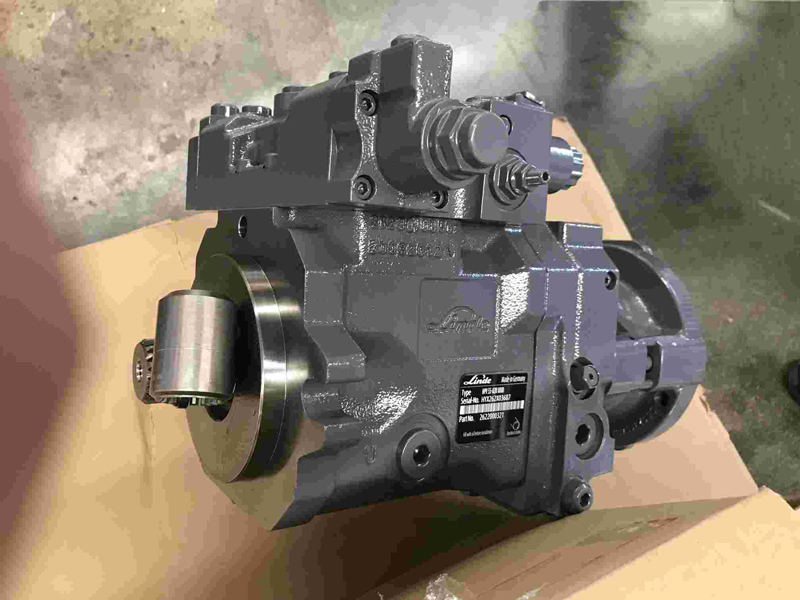

Hydraulic pump

Hydraulic Pump

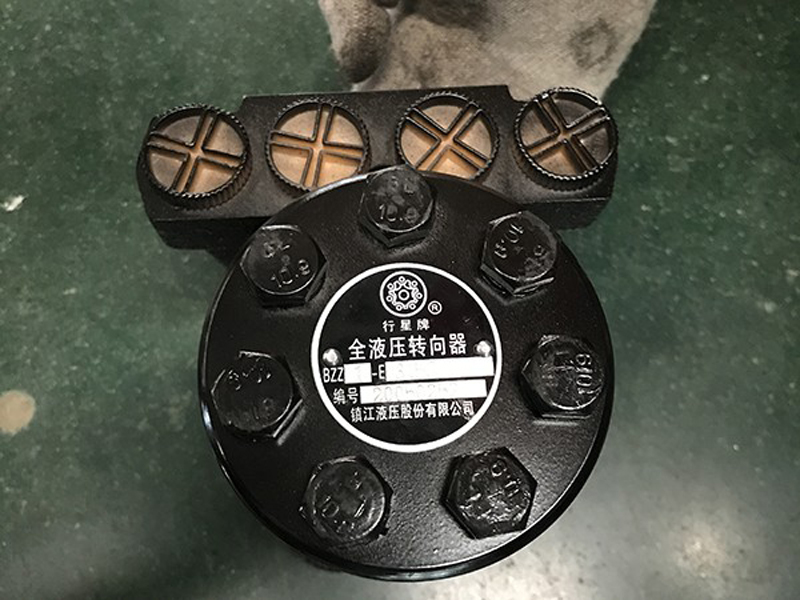

Steering Gear

Steering Gear




1.What are your prices?
Our prices are subject to model.

2.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3.What is the average lead time?
The average lead time would be 3 months after advance payment.

4.What kinds of payment methods do you accept?
