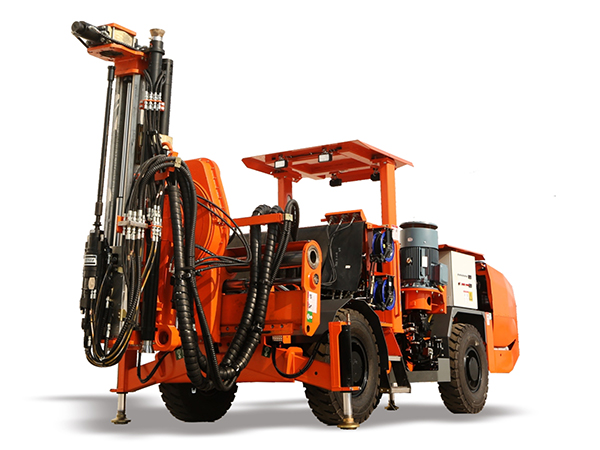

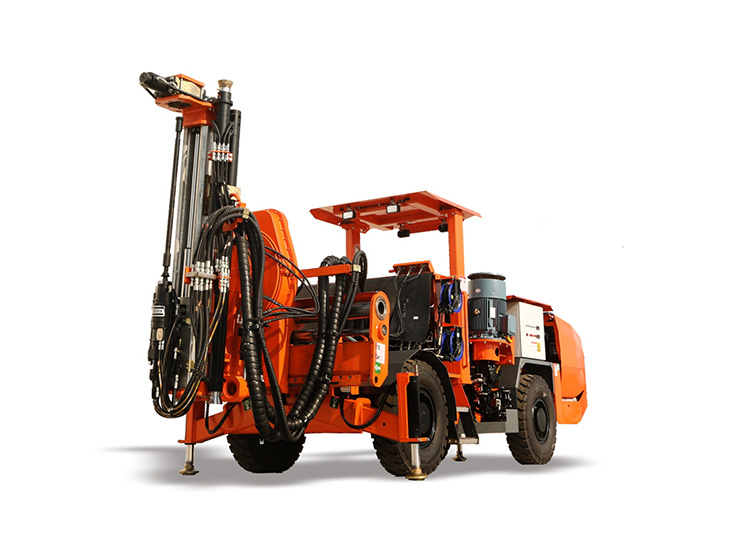

Longhole Drill DL4
Features
1.Adaptation: 3.8×5.3m deep hole operation in tunnel (with 1220 poles) (1525/1830mm poles can be selected according to the height of the tunnel)
2.It can meet the requirements of 41m, Φ 76-89mm deep hole operation, and the optional rod bank can automatically connect and unload rods (capacity 21+1 rods).
3.Mobile remote control console and mobile working lighting.
4.With angle display.
5.Diesel engine self-propelled, electric operation, with cable drum 100m.
6.Four-wheel drive, chai connection chassis.
7.Equipped with 25KW/18KW rock drill, the comprehensive rock drilling speed is 0.6-0.8m/min°
8.The propelling beam is equipped with upper and lower tops to fix the angle of the propelling beam, and the parallel sliding table and rocker arm can meet the parallel
9.operation of 3m. A cleaning system is provided to clean up the propelling beam to drill the magma upward.
Applications

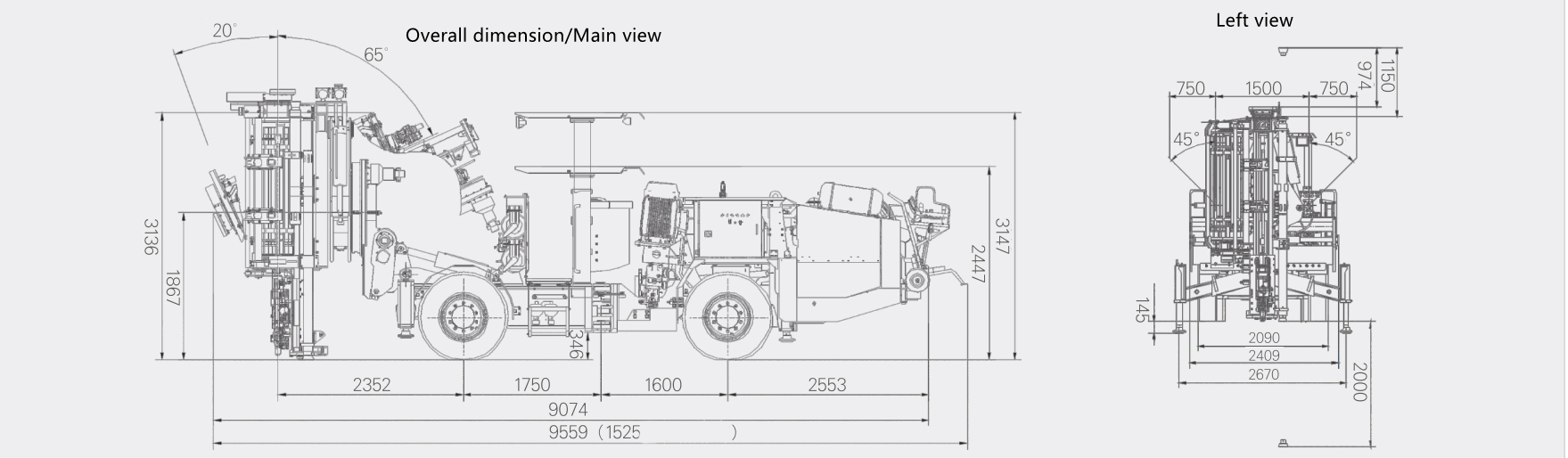

Main View

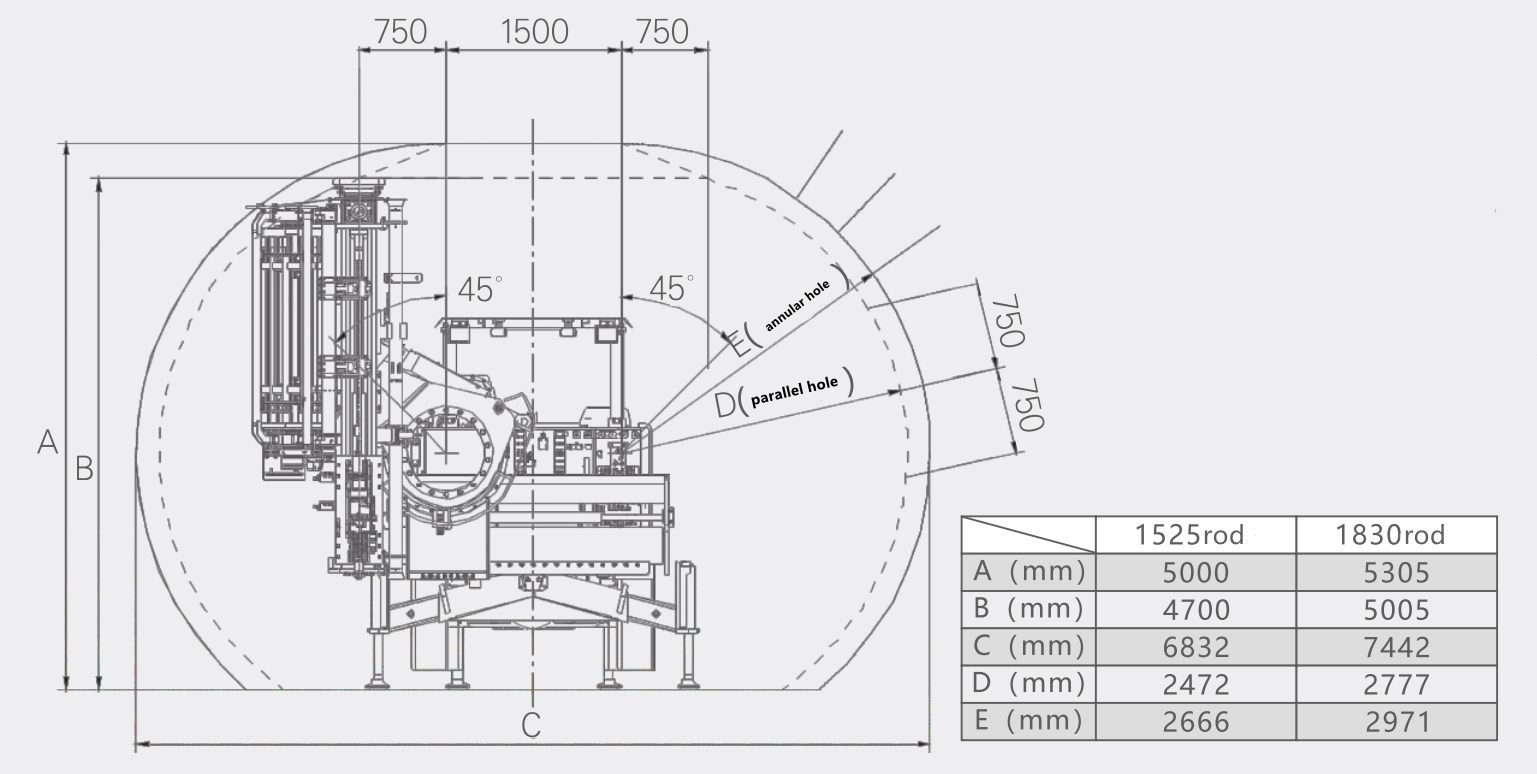

Coverage Area

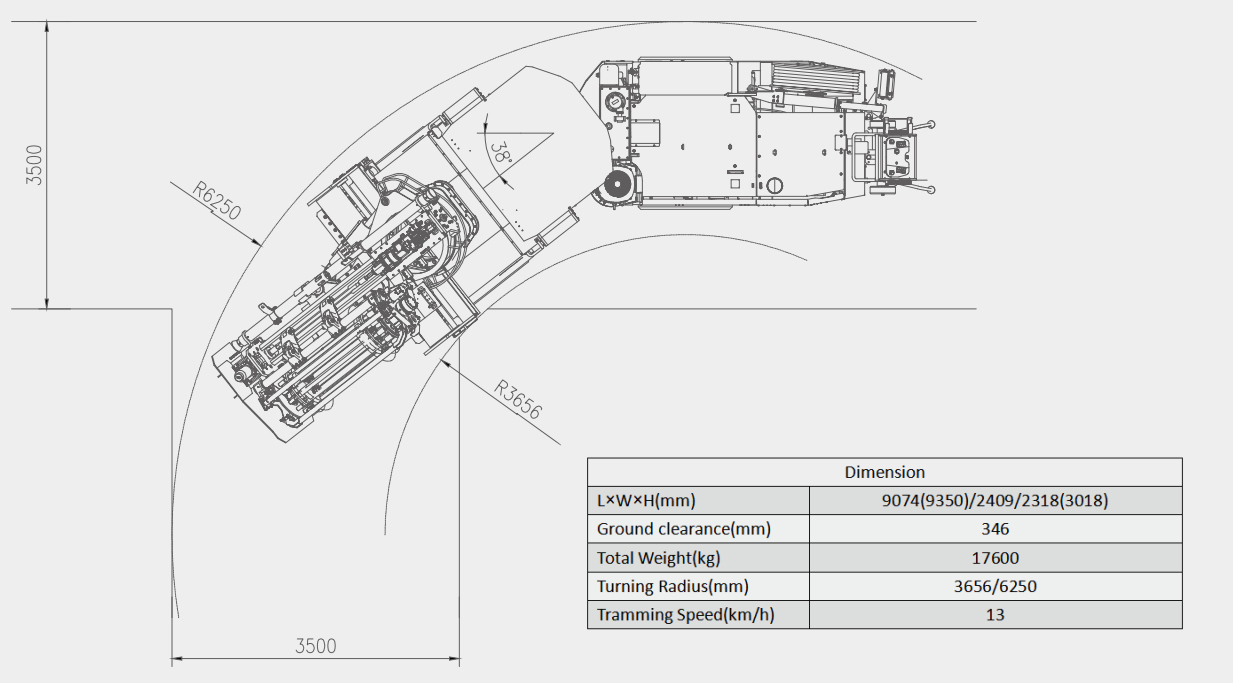

Turning Radius

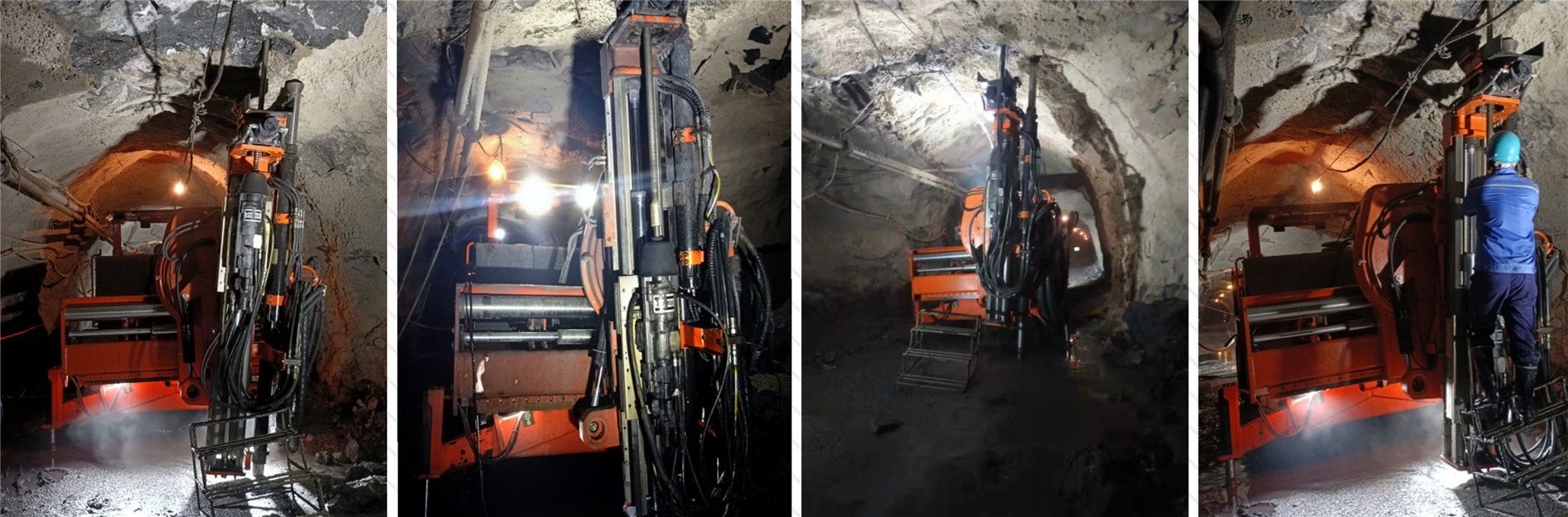

Applications
The DL4 is used in underground mine of narrow tunnels.
Applications
-

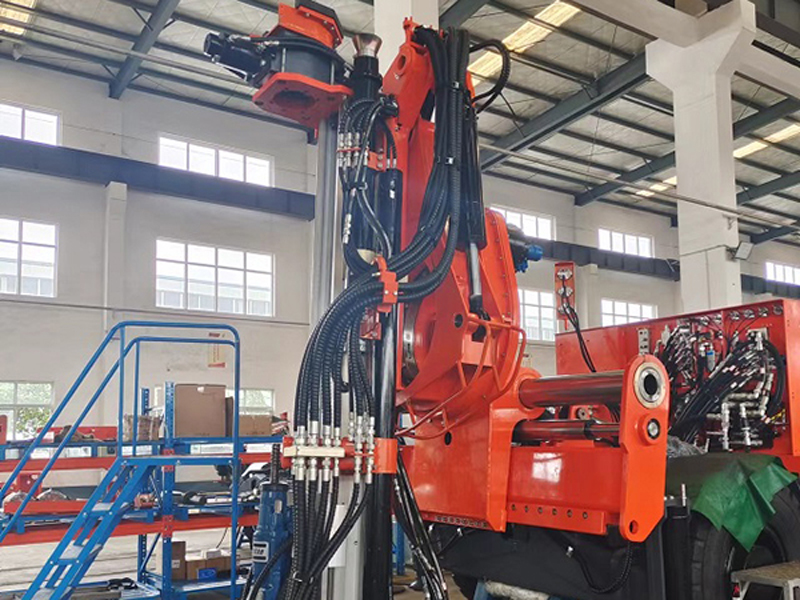

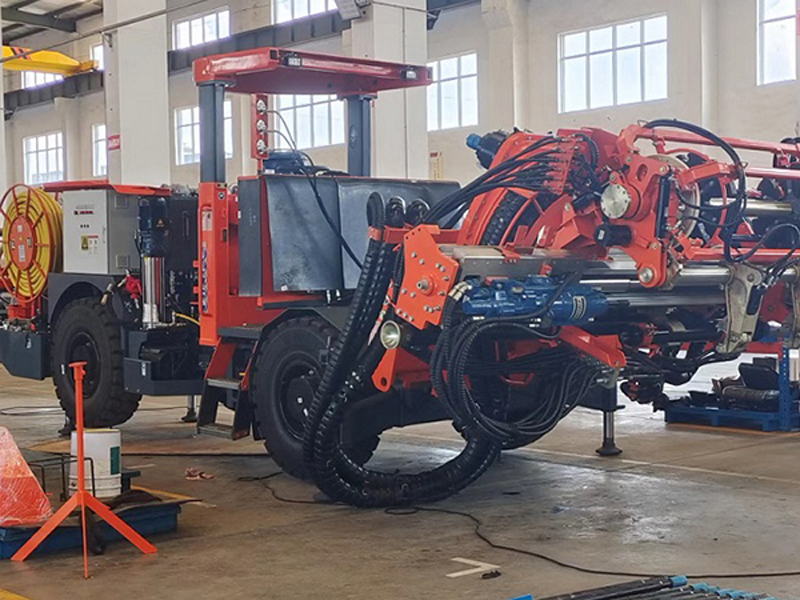

Drilling Boom -

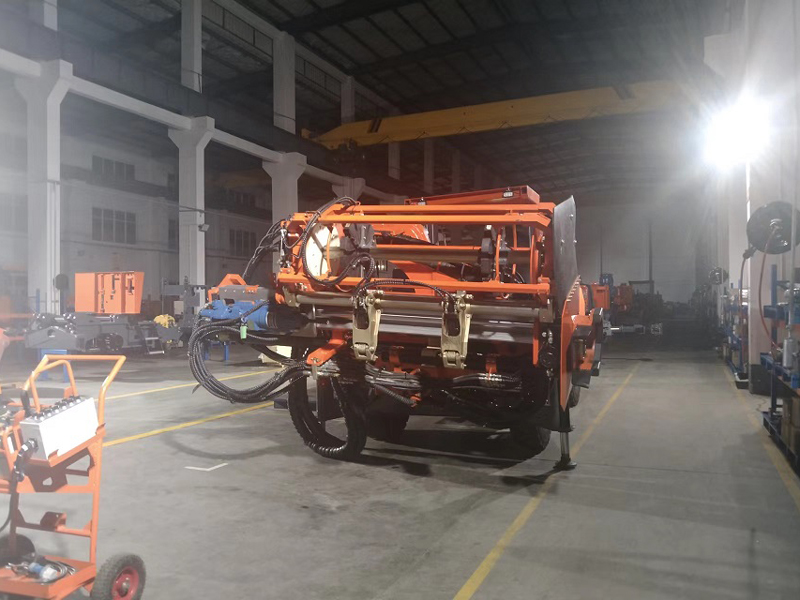

Overall view -

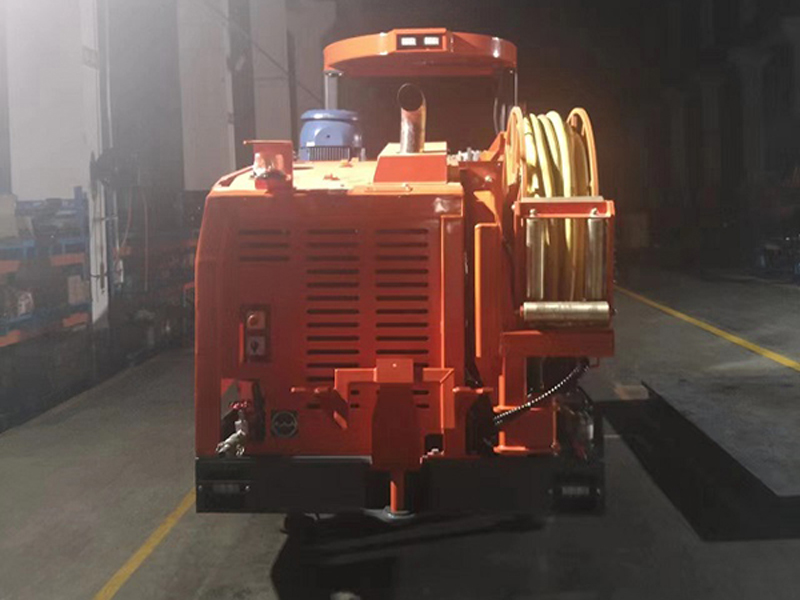

Rear part and cable roll -
Rod quiver
FAQ
1.What are your prices?
Our prices are subject to model.
2.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
3.What is the average lead time?
The average lead time would be 3 months after advance payment.
4.What kinds of payment methods do you accept?
Negotiable.
