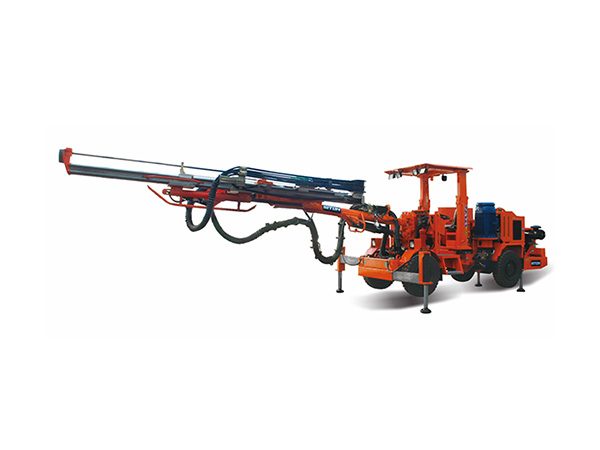

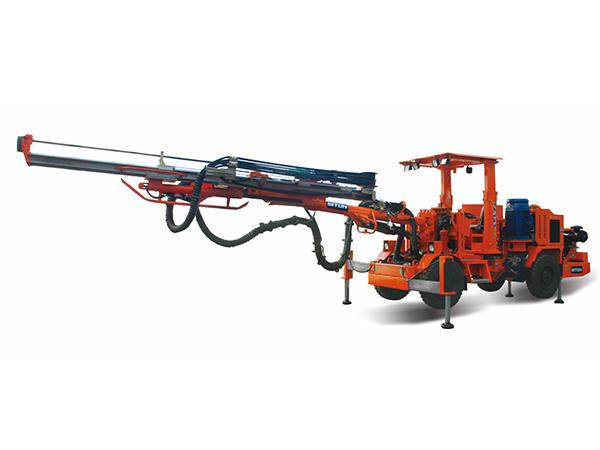

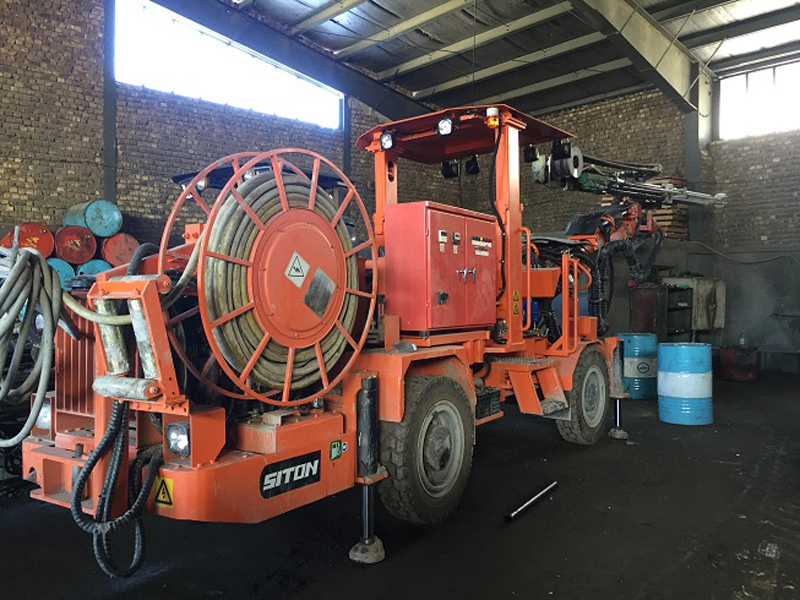

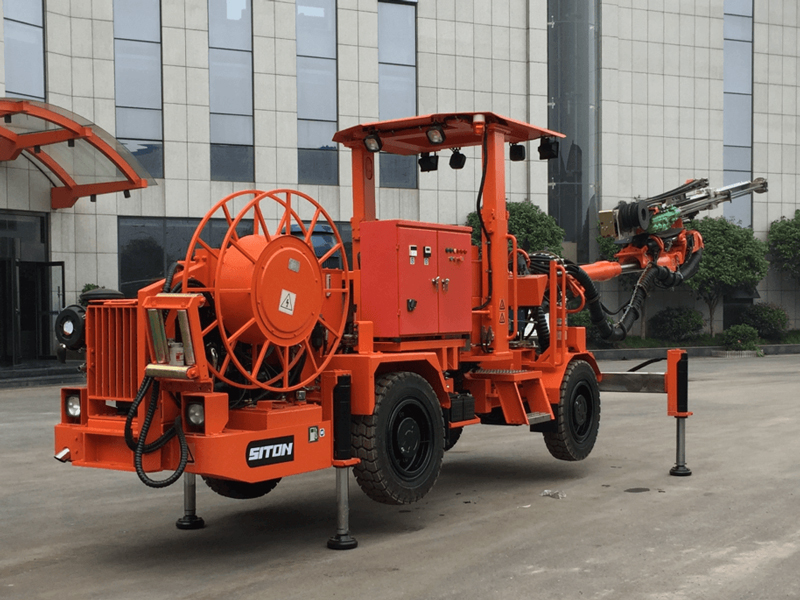

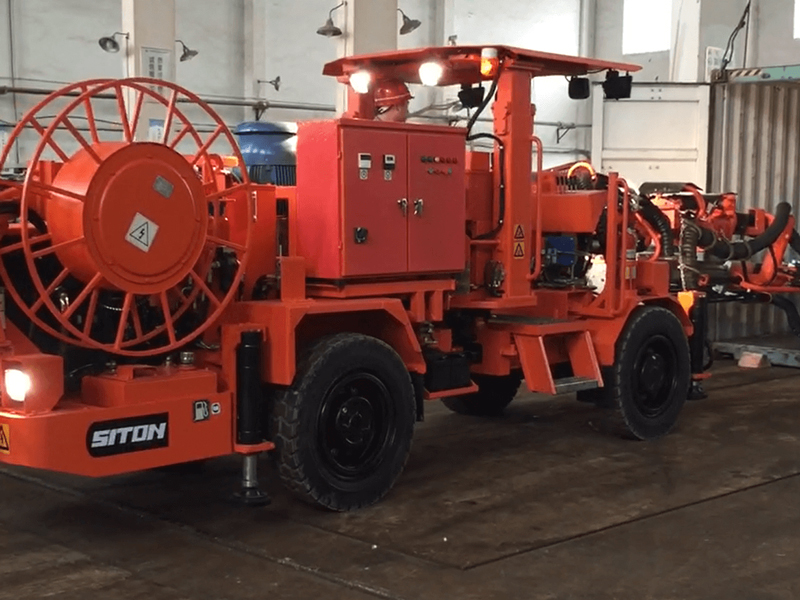

Drilling Jumbo DW1-31(CYTJ76)

Drilling jumbo is mining equipment widely used in underground mining if mining is done by drilling and blasting. It is also used in tunnel, culvert tunnelling engineering with advanced hydraulic system and anti-clamping bit device ,the rock drilling rig is a modern equipment of convenient, safe and reliable operation.

Equipped with double dynamic system and full hydraulic system, the rig has the advantages of high speed drilling, low energy consumption, flexible movement. Furthermore, the drilling system can avoid stuck problem automatically. The complete machine is designed as compact type, which not only improved the stability, but also reduced labor intensity.

This model is only available in Middle-east Countries.

Product Details

Product Introduction

We adopted DANA brand chassis with MICO dual circuit brake system on the DW1-31 machine, so the wet spring brake ensures higher safety. On the other hand, fully hydraulic rock drill machine WOSERLD1838ME(18kW) is equipped, which can reach 0.8~2m/min drilling speed and meet the drilling requirements of different hardness rock. 53kW diesel engine and four –wheel drive can make DW1-31 walk in the narrow tunnel(10~36m2) very easly.

Features

Hydrulic Drill Boom

(1) Unique design of drill boom improves accuracy and parallelism of borehole spacing, which achieves accurate and quick positioning.

(2) Flexible movement: Rotary motor in the front of upper arm makes the whole feed mechanism move easily(±180°)

(3) Heavy duty aluminum alloy propelling beam & Stainless steel coating: High anti-bend and anti-twist strength, stainless material ensures longer life for DW1-31;

Rock Drill of Single Boom Jumbo

(1) High efficiency: WOSERLD 1838ME rock drill developed by Sweden company provide excellent performance on high hardness rocks. The efficiency is 2~4 times of traditional handheld rock drill.

(2) Long service life: Shank’s special structure can eliminate reaction of the strike, extending service life of rock drill(drifter).

Hydraulic system of wheel drilling jumbo

(1) Multi-filtration system improves oil cleanliness and reduces failure in hydraulic system;

(2) Rational pump flow and efficient water cooler ensure that the system can maintain normal oil temperature after long hours working;

(3) Stepwise compression technology used can optimized the match between propelling force and impact force, also improves the positioning and drilling efficiency.

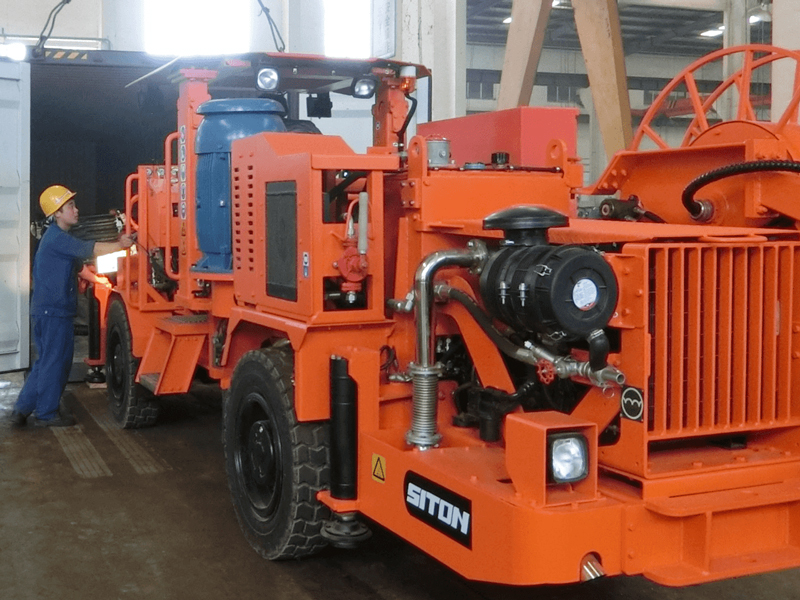

Chassis

(1) Hinge jointed heavy duty Chassis, hydrostatic drive, four-wheel drive guarantee excellent power performance and fuel economy.

(2) Key components are imported from international famous brands.

(3) Three brake conditions including running brake, parking brake and emergency brake.

(4) Extendable and flexible front hydraulic supporting legs.

(5) Fixed driving seat ensures high safety for operators.

Drawings

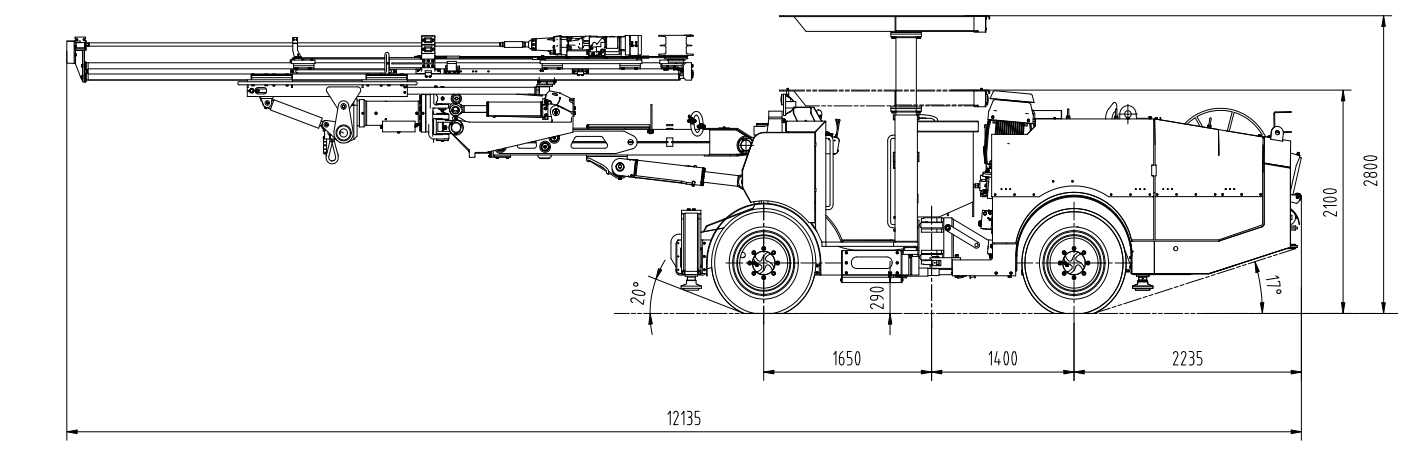

Complete Machine Dimension

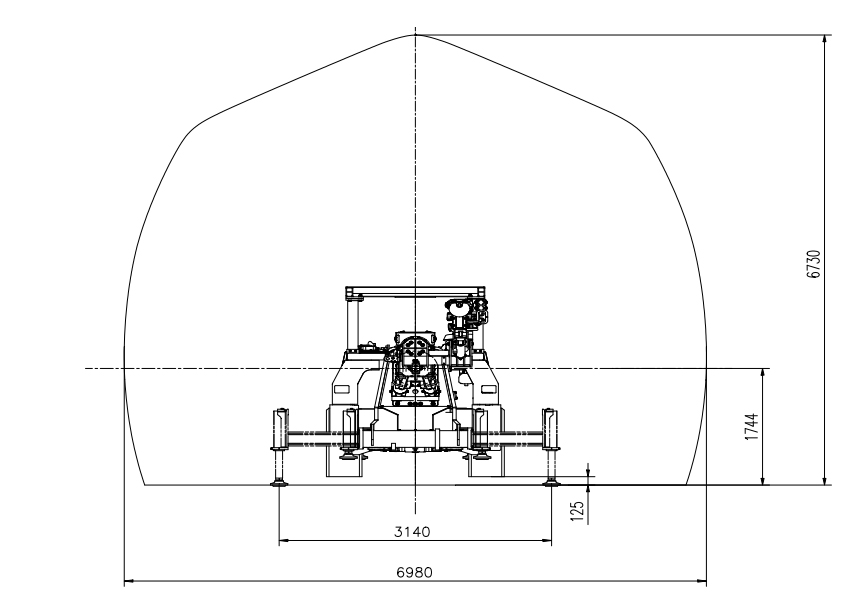

Coverage Area

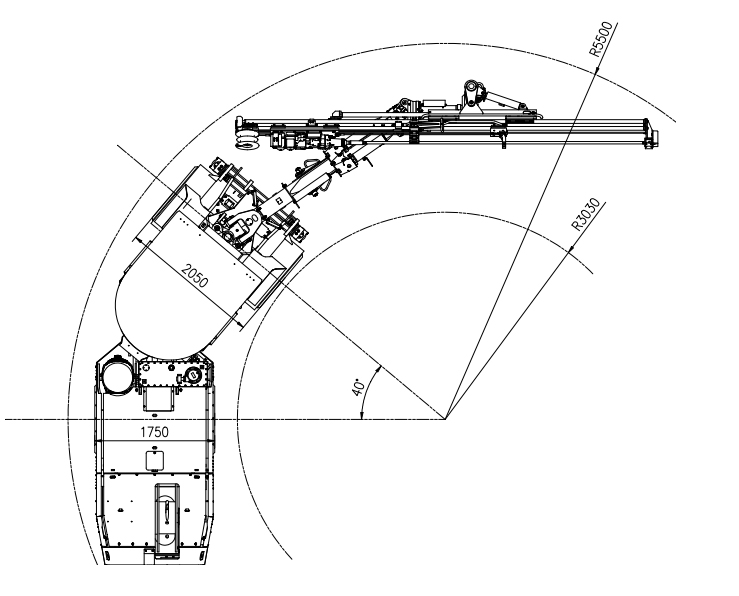

Turning Radius

Applications

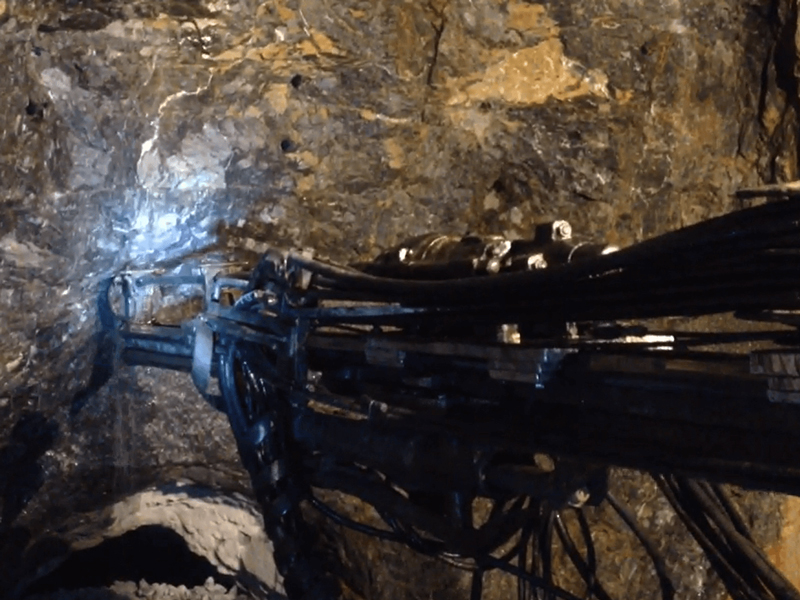

The DW1-31 is used in underground mine of narrow tunnels.

Applications

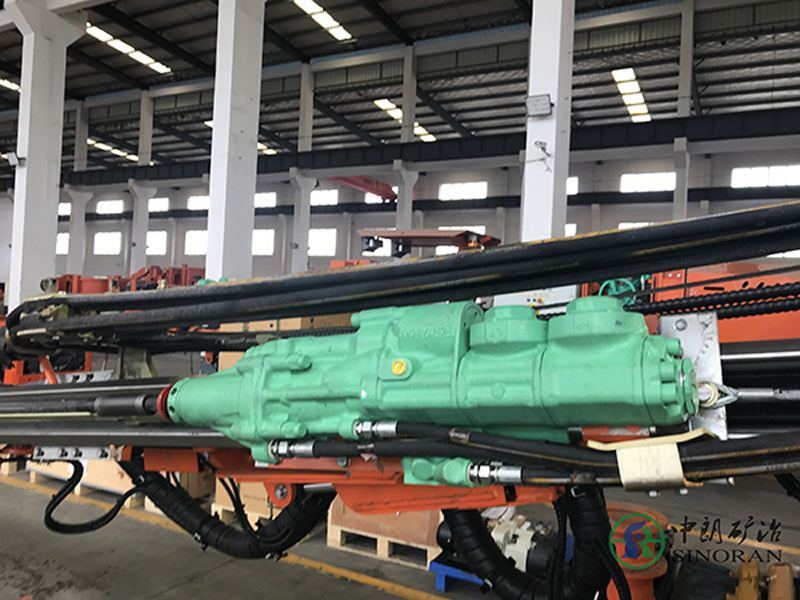

Drifter
Pump

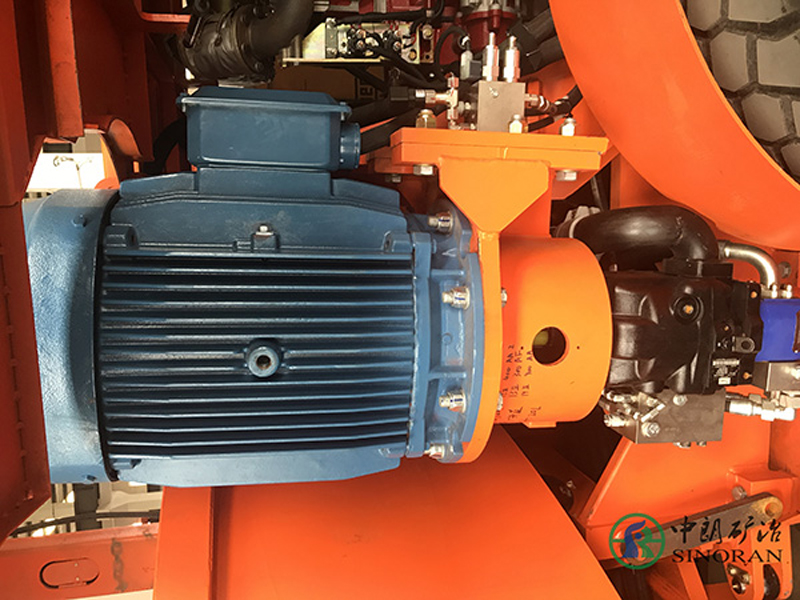

Motor

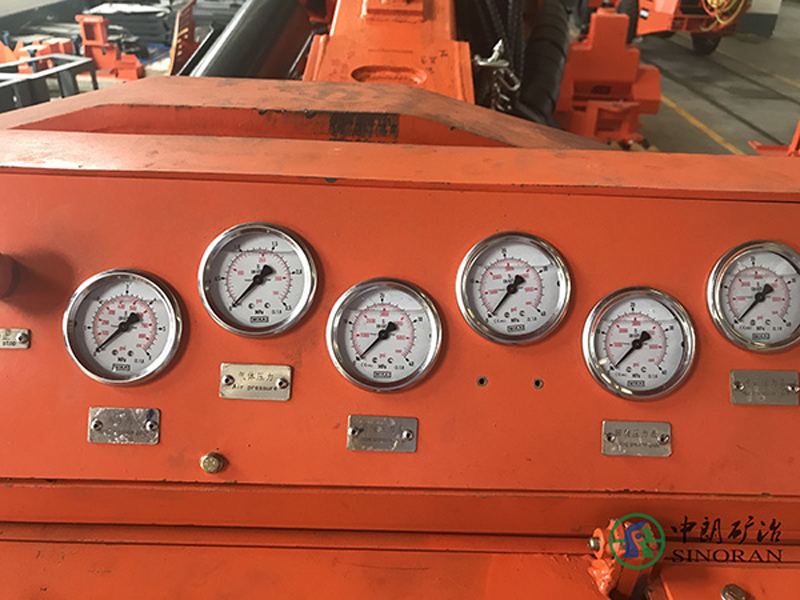

Instrumental Panel

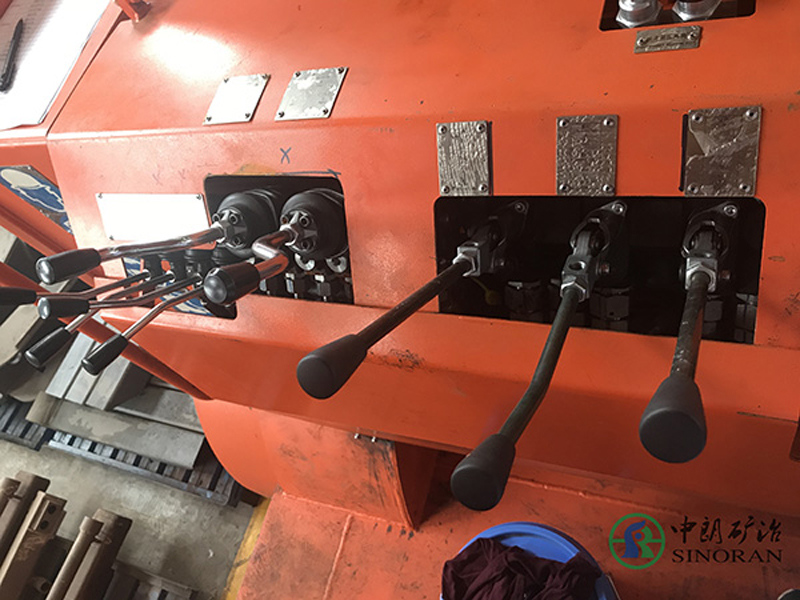

Operation bars

Parameters

	Item	Technical Parameters
Complete machine	Dimension(L×W×H)	12135×2050×2100/2800mm
	Section area(B×H)	6980×6730mm
	Drilling hole diameter	Φ38~76mm
	Drilling rod length	3700/4300mm(optional)
	Hole depth	3400/4000mm
	Drilling speed	0.8~2 m/min
	Main motor power	55kW
	Hydraulic oil tank volume	200 L
	Total weight	13200kg
Boom	Rock drill	Woserld 1838ME
	Roll-over	360°
	Max. lifting angle	+90°/-3°
	Feed extension	1500mm
	Telescopic extension	1250mm
Chassis	Engine power	53kW
	Articulated steering	±40°
	Tire specification	9.00R20
	Rear axle swing angle	±7°
	Clearance/outside axles	20/17°
	Turning Radius(Inner/Outer)	3.03/5.5m
	Tramming speed	12km/h
	Min. Ground clearance	290mm
	Walking brake	Full closed wet braking
	Fuel tank volume	70L
Air supply system	Air compressor	ZLS07A/8
	Flowrate	920L/min
	Motor power	5.5kW
	Working pressure	0.5~0.8Mpa
Water supply system	Booster water pump	Centrifugal
	Flowrate	67L/min
	Motor power	3kW
	Working pressure	0.8~1.2Mpa
Electrical system	motor power in total	62(55+7)kW
	Voltage	380/1140V
	Motor rotation speed	1483r/min
	Tramming lights	8×55W 12V
	Working lights	2×150W 220V
	Cable model	3×35
	Cable reel diameter	1050mm
